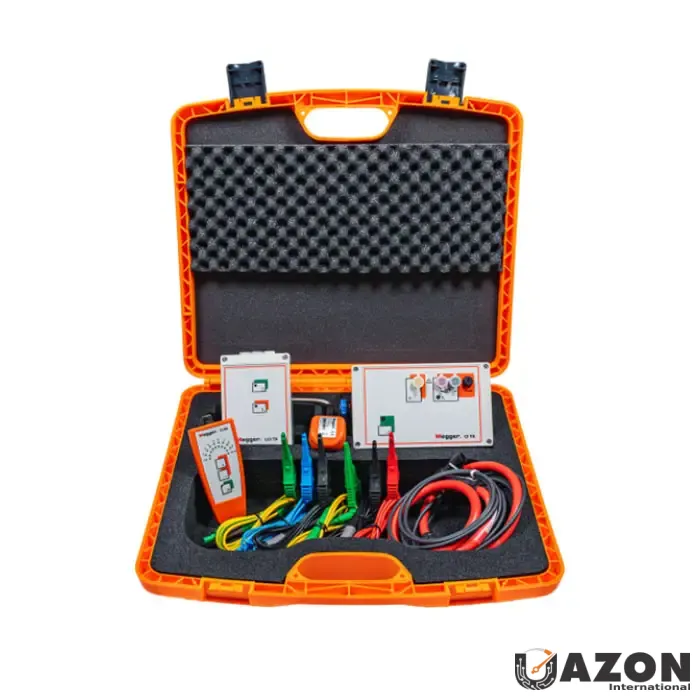

Megger CI/LCI Cable Identifier

Megger CI/LCI Cable Identifier: The Ultimate Guide to Safe Cable Identification

Electrical professionals face constant challenges when managing complex cable infrastructures, particularly when distinguishing between de-energized and energized lines in crowded trays or conduits. The Megger CI/LCI Cable Identifier is designed to ensure the safe identification of de-energized primary cables within a group of energized or de-energized cables. This system eliminates the guesswork and physical risk associated with traditional tracing methods, offering a robust solution for utility workers, industrial electricians, and maintenance teams. Whether you are isolating a specific circuit for maintenance or verifying a secondary line, the CI/LCI provides the accuracy required to prevent accidental re-energization or equipment damage.

Beyond primary cable identification, this versatile device also allows for the identification of live secondary cables up to 240 V AC, with an optional capability to handle up to 440 V AC. The identification process is highly reliable and safe, utilizing a DC pulse system with a magnitude up to 100 A to avoid any false positives. For teams looking to streamline their safety protocols, the Buy Megger CI/LCI represents a critical investment in operational reliability. Understanding the technical nuances and application benefits of this tool is essential for making an informed purchasing decision.

Technical Features and Field Applications of the Megger CI/LCI

The Megger CI/LCI system safely identifies cables using a DC pulse method, which involves the detection of the polarity and signal strength emitted by the transmitter. This signal is captured by a receiver equipped with a clip-on probe, ensuring non-invasive testing without the need to disconnect live components. The transmitter is versatile, operating either from a standard 120 V AC power source or an internal battery, which provides up to 50 hours of operation. This dual-power capability ensures that the device remains functional in remote locations where AC power may be unavailable.

Designed for efficiency, the system is engineered to eliminate the risk of false positive results in cable identification, a common and dangerous issue in complex electrical networks. The ability to handle high-current DC pulses up to 100 A allows the signal to penetrate shielding and bypass parallel interference, ensuring that the receiver detects only the intended target cable. When considering the Megger CI/LCI Price, it is important to weigh the cost against the prevention of potential downtime and safety hazards. The following technical features highlight why this device is a preferred choice for professionals demanding precision.

• Safe Identification of De-energized Cables: The system allows users to locate specific de-energized primary cables within a bundle that may contain live lines, significantly reducing the risk of accidental contact.
• Live Secondary Cable Tracing: It effectively identifies live secondary cables up to 240 V AC, with an optional upgrade to handle 440 V AC, making it suitable for a wide range of utility applications.
• False Positive Avoidance: Utilizing a unique DC pulse transmission and advanced receiver logic, the device minimizes the chance of misleading signals, ensuring total confidence during isolation procedures.
• Easy and Safe Operation: The system is designed to work without any need for adjustments by the user, allowing for rapid deployment in the field with minimal training required.

Transmitter Specifications and Power Efficiency

The transmitter unit of the Megger CI/LCI is the heart of the identification system, engineered for flexibility and endurance. It can be powered by a standard 120 V AC source or its internal battery, providing up to 50 hours of runtime on a single charge. This extended operational time is crucial for long-term projects where access to charging points is limited. The device’s ability to generate a DC pulse of up to 100 A ensures a strong signal that can be detected even through heavy insulation or in noisy electrical environments.

For those evaluating the Buy Megger CI/LCI options, the transmitter’s power efficiency translates directly to field productivity. The internal battery system utilizes standard AA cells, making replacement easy and cost-effective. Below are the detailed power and physical specifications that define the transmitter's performance profile.

• Power Supply Options: Operates on 2 x 1.5 V AA batteries or a 120 V AC source, ensuring continuous operation in diverse environments.
• Extended Runtime: The internal battery provides over 50 hours of active testing time
