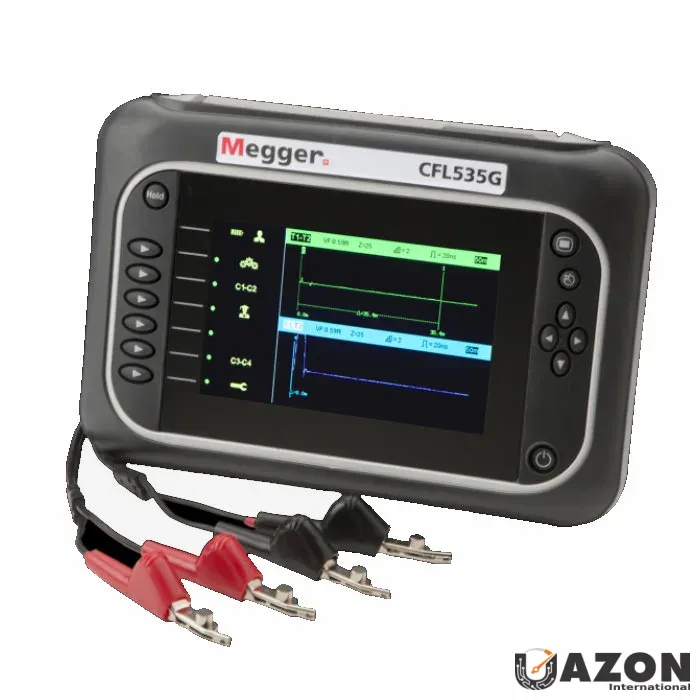

Understanding the Megger CFL535G Dual-Channel Time Domain Reflectometer
Cable faults in telecommunications and power distribution networks can lead to significant downtime and costly repairs if not located quickly and accurately. The Megger CFL535G is a sophisticated dual-channel Time Domain Reflectometer (TDR) designed specifically for locating faults in metallic cables. This instrument is an essential tool for field engineers and maintenance professionals who require precision and reliability in demanding environments. By providing a visual representation of the cable path, the CFL535G allows users to identify impedance changes caused by faults, splices, and breaks without the need for destructive testing.
When you are ready to purchase this advanced testing equipment, the Megger CFL535G Price reflects its high-end capabilities and robust construction. Professionals looking to buy the Megger CFL535G will find it offers an optimal balance of performance and ease of use. This device ensures that cable paths remain clear and uninterrupted, making it a critical asset for maintaining network integrity.
Technical Features and Field Applications of the Megger CFL535G
The technical architecture of the Megger CFL535G is built around high-speed signal processing and user-centric design. One of the standout specifications is its dual-channel capability, which allows for simultaneous testing of two cables or comparing different settings on a single cable. This feature significantly reduces the time required for complex fault location tasks. Furthermore, the instrument boasts a minimum resolution of 0.1 meters, ensuring that even the most minute faults are detected with precision.
For field applications, the ability to operate over distances up to 20 kilometers is vital. This range, combined with a variable velocity factor ranging from 0.2 to 0.99, ensures that the instrument adapts seamlessly to any cable type, from twisted pair to coaxial lines. When considering the Best Price for the Megger CFL535G, it is important to evaluate these core capabilities, as they directly translate to operational efficiency and reduced maintenance costs. Buy Megger CFL535G to leverage these technical advantages in your daily workflow.
Advanced Pulse Technology and Automatic Setup
Speed and accuracy are paramount in fault localization, and the CFL535G delivers on both fronts through its advanced pulse technology. The device utilizes an ultra-fast pulse generator for near-end fault identification, a common challenge in metallic cable testing. This capability allows users to pinpoint faults that are close to the testing point, which are often difficult to distinguish with standard TDRs. Additionally, the AUTO set-up mode simplifies the testing process, enabling instant use without the need for manual configuration of complex parameters.
The integration of Xpert guidance further enhances the user experience by providing intuitive prompts to potential faults. This guidance system helps operators interpret waveforms correctly, reducing the likelihood of human error. For those looking to buy the Megger CFL535G, these intelligent features provide a significant return on investment by minimizing training time and maximizing first-time fix rates. The Megger CFL535G Price is justified by these smart, user-focused engineering choices.
Optimized Impedance Matching and Output Capabilities
Effective TDR testing relies on the precise matching of the instrument's output impedance to the cable under test. The Megger CFL535G offers a selection of five output impedances, ranging from 25 Ω to 125 Ω. This range covers the majority of metallic cable types used in modern infrastructure. The automatic impedance matching function is a critical feature that optimizes performance across different cable environments, ensuring that the reflected signal is clear and distinct.
The output pulse specifications are equally impressive, delivering up to 20 volts peak-to-peak into an open circuit. This high-voltage pulse ensures deep penetration into long cable runs while maintaining signal integrity. Pulse widths are dynamically varied based on the selected range and cable type, further enhancing measurement accuracy. When you buy the Megger CFL535G, you are investing in a tool that automatically adjusts these critical parameters, allowing you to focus on analyzing the results rather than configuring the device.
Durability and Safety Standards for Industrial Environments
Field instruments must withstand harsh conditions, and the CFL535G is engineered for real-life working environments. With an IP54 rating, the device is protected against dust ingress and water splashes from any direction. This durability ensures reliable operation whether used indoors in data centers or outdoors in utility substations.
