Megger BM5200 Price and High-Voltage Insulation Testing Guide

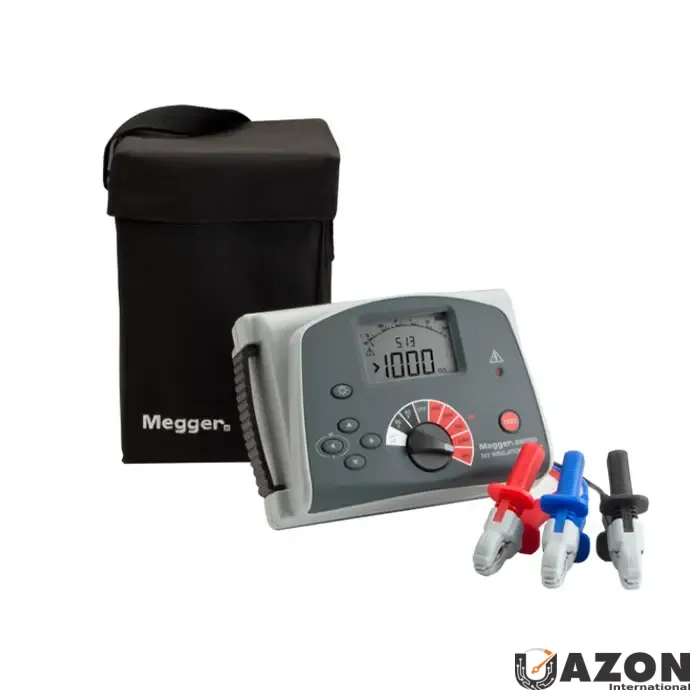

The Megger BM5200 5 kV insulation resistance tester is engineered for high-voltage insulation resistance testing, making it the ideal instrument for maintaining and servicing cables, rotating machinery, transformers, switchgear, and various other industrial applications. When professionals ask about the Megger BM5200 price, they are often evaluating the return on investment provided by its rugged construction and precision measurement capabilities. This robust tester allows you to conduct DC insulation tests at selectable voltages of 250 V, 500 V, 1000 V, 2500 V, and 5000 V, covering a vast spectrum of testing requirements. It features an insulation resistance measurement range that extends from 100 kΩ to 1000 GΩ, ensuring that even the most subtle insulation degradation is detected. Additionally, the instrument offers an automatic discharge for capacitive circuits under test and clearly displays the decaying voltage, prioritizing operator safety during high-energy applications.
The instrument operates on battery power, featuring both a digital and an analogue arc display to provide users with versatile viewing options suited to their preference or environmental conditions. It includes a guard terminal specifically designed to enhance accuracy by reducing the impact of surface leakage, which is a common cause of measurement errors in the field. For those looking to buy the Megger BM5200 or explore the full range of insulation resistance meters, the device represents a balance of traditional reliability and modern diagnostic features. This article provides a comprehensive analysis of the Megger BM5200, detailing its technical specifications, field applications, and the distinct advantages it offers over other testers in its class.
Technical Features and Field Applications of the Megger BM5200
Understanding the technical features of the Megger BM5200 is essential for recognizing its value in complex industrial environments. The device is not merely a measurement tool but a comprehensive diagnostic system designed to handle the challenges of high-voltage testing. The integration of a digital interface with a classic analogue arc display allows for rapid trend analysis, while the internal memory and timed test modes ensure data integrity over long-duration tests. When considering the Megger BM5200 price, one must account for these advanced features that streamline the testing process and reduce the likelihood of human error.
In practical terms, the BM5200 excels in environments where precision is non-negotiable. The guard terminal is particularly beneficial when testing older cables or machinery where surface contamination might otherwise skew results. By shunting leakage currents away from the measurement circuit, the tester provides a true reading of bulk insulation resistance. For procurement managers looking to buy the Megger BM5200, the instrument’s ability to perform Polarisation Index (PI) and variable timed tests makes it a versatile asset for predictive maintenance programs.
- 1 TΩ, 1.4 mA, 5 kV digital insulation tester with digital and analogue display.
- Five selectable test ranges: 250 V, 500 V, 1000 V, 2500 V, and 5000 V.
- Insulation (InS), Polarisation Index (PI), and variable timed test (t) modes for comprehensive analysis.
- Selectable DC or AC voltmeter functions, including frequency measurement.
- Guard terminal to shunt surface leakage currents and improve measurement accuracy.
- CAT III 600 V safety rating for protection in fixed industrial installations.
Detailed Specifications and Measurement Accuracy
The specifications of the Megger BM5200 highlight its capability to deliver accurate readings across a wide range of environmental conditions and test voltages. Precision is critical in insulation testing, as even a small percentage of error can lead to misdiagnosis of equipment health. The BM5200 offers exceptional insulation accuracy, starting with ±5% ±2 digits up to 1 GΩ. For measurements exceeding 1 GΩ, the accuracy scales depending on the selected test voltage, ensuring that high-resistance measurements remain reliable. When evaluating the Megger BM5200 price, the technical precision provided by these specifications is a key factor in its value proposition.
Beyond insulation resistance, the BM5200 is equipped with a robust voltmeter and frequency measurement capabilities. This dual functionality reduces the need for additional instruments on site, streamlining the workflow for technicians. The device is powered by standard AA batteries, offering a battery life sufficient for a full day of testing under typical conditions.
