Understanding the Need for Precision Ultrasonic Thickness Measurement
In demanding industrial environments, maintaining structural integrity is paramount. Corrosion, wear, and material degradation can compromise the safety and reliability of critical assets such as pipelines, pressure vessels, and structural components. To address these challenges, professionals require a measurement tool that delivers not only accuracy but also efficiency and versatility. The MarMonix MUT-530PS Digital Ultrasonic Thickness Gauge is engineered to meet these exact requirements, providing a reliable solution for non-destructive thickness testing across a wide spectrum of materials.
MarMonix MUT-530PS: A Comprehensive Overview

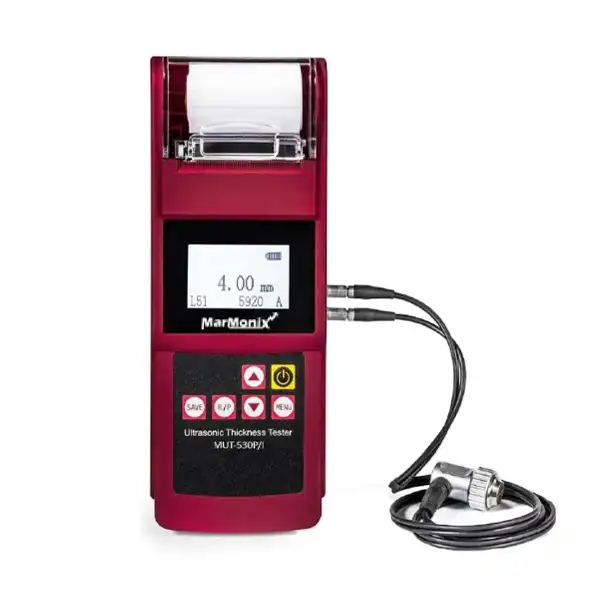

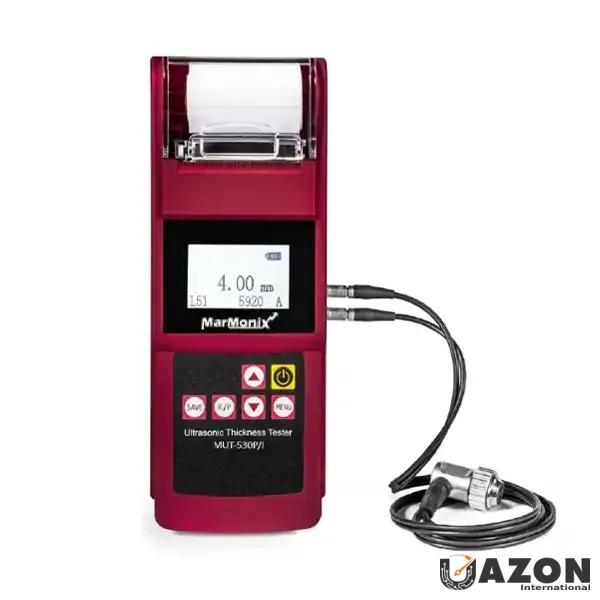

The MarMonix MUT-530PS is an advanced ultrasonic thickness gauge designed for precise and efficient thickness measurement. It is built for industrial applications, material testing, and quality control, combining high precision with robust reliability. This device is particularly valuable for professionals who need to conduct on-site assessments and require immediate, documented results. Its core function is to determine material thickness by measuring the time it takes for an ultrasonic pulse to travel through a test piece and reflect from its back wall. This non-destructive method ensures that samples remain unharmed during inspection.
Technical Features and Field Applications of the MarMonix MUT-530PS
The MarMonix MUT-530PS is equipped with a suite of advanced features that enhance its functionality in real-world scenarios. These features are designed to improve measurement accuracy, operational efficiency, and data management for professionals in the field.
- The device includes a built-in high-speed thermal printer for instant on-site printing of measurement results. This feature is crucial for immediate documentation, allowing technicians to generate hard-copy reports directly at the inspection site without needing additional equipment. The printer uses paper with a width of 56.5±0.5 mm.
- It comes with dual probes (a standard probe and an angle probe) to address diverse testing needs. The standard probe is ideal for general-purpose measurements on flat surfaces, while the angle probe is essential for accessing hard-to-reach areas or curved surfaces, such as pipelines and cylindrical components.
- The inclusion of a 4-step calibration block ensures exceptional versatility for diverse testing needs. Calibration is a critical step in ultrasonic testing to ensure the accuracy of the gauge, and having a dedicated block simplifies this process significantly.
- Equipped with a rechargeable Li-ion battery, the gauge ensures up to 10 hours of continuous operation. This long battery life makes it perfect for extended work sessions in the field, where access to power outlets may be limited.
- It supports measurements in both millimeters (mm) and inches (in), catering to various user preferences and industry standards, enhancing its usability across different regions and applications.
- The device offers a large memory capacity, allowing for efficient storage of measurement data. It can store up to 2000 groups of measurement data, which can be recalled, edited, or deleted as needed. This is vital for projects requiring extensive data collection and analysis.
- It features sound velocity measurement capability, allowing the device to directly measure the sound velocity of a material based on its thickness. This is particularly useful when working with materials whose sound velocity is not pre-set in the device.
- PC compatibility is provided through included software for data transmission, analysis, and report generation. This ensures seamless integration into professional workflows, enabling deeper analysis and professional report creation on a computer.
Material Compatibility and Industrial Uses
The MarMonix MUT-530PS ultrasonic thickness gauge is compatible with a wide array of materials, making it a versatile tool for numerous industries. Its broad compatibility ensures it can be used in various manufacturing, construction, and testing applications.
- Metals such as steel, cast iron, aluminum, and copper.
- Plastics
- Ceramics
- Composites
- Epoxies
- Glass
Performance Specifications and Practical Benefits
The operational performance of the MarMonix MUT-530PS is defined by its impressive technical specifications. Understanding these parameters is key to appreciating the device's value in practical scenarios. The gauge boasts a wide measuring range of 0.75 to 350 mm, depending on the probe used and the material being tested. This range is suitable for measuring both thin sheets and thick structural components. The accuracy is rated at ±(0.5%H+0.01) mm, where H is the thickness of the testing piece, ensuring reliable data for critical decisions. The resolution is 0.01 mm, providing the fine detail needed for precise monitoring of corrosion or wear. Furthermore,
