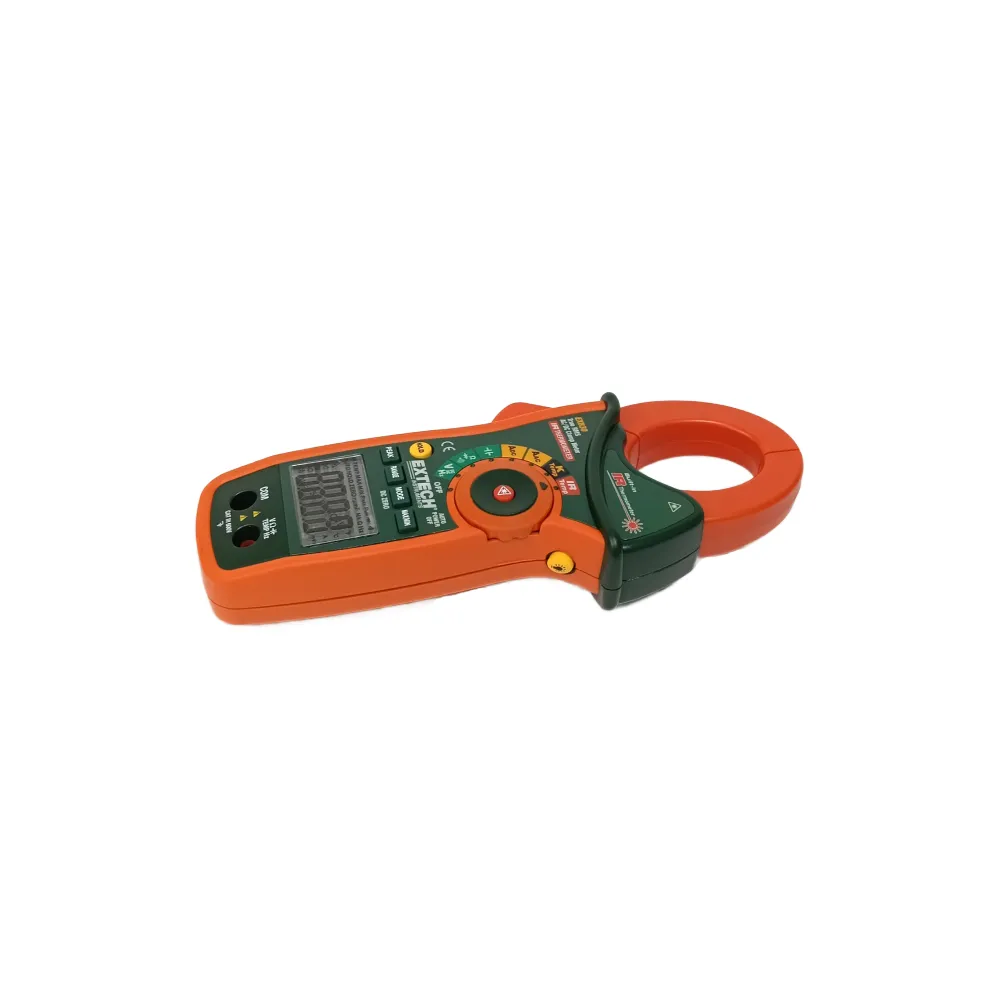

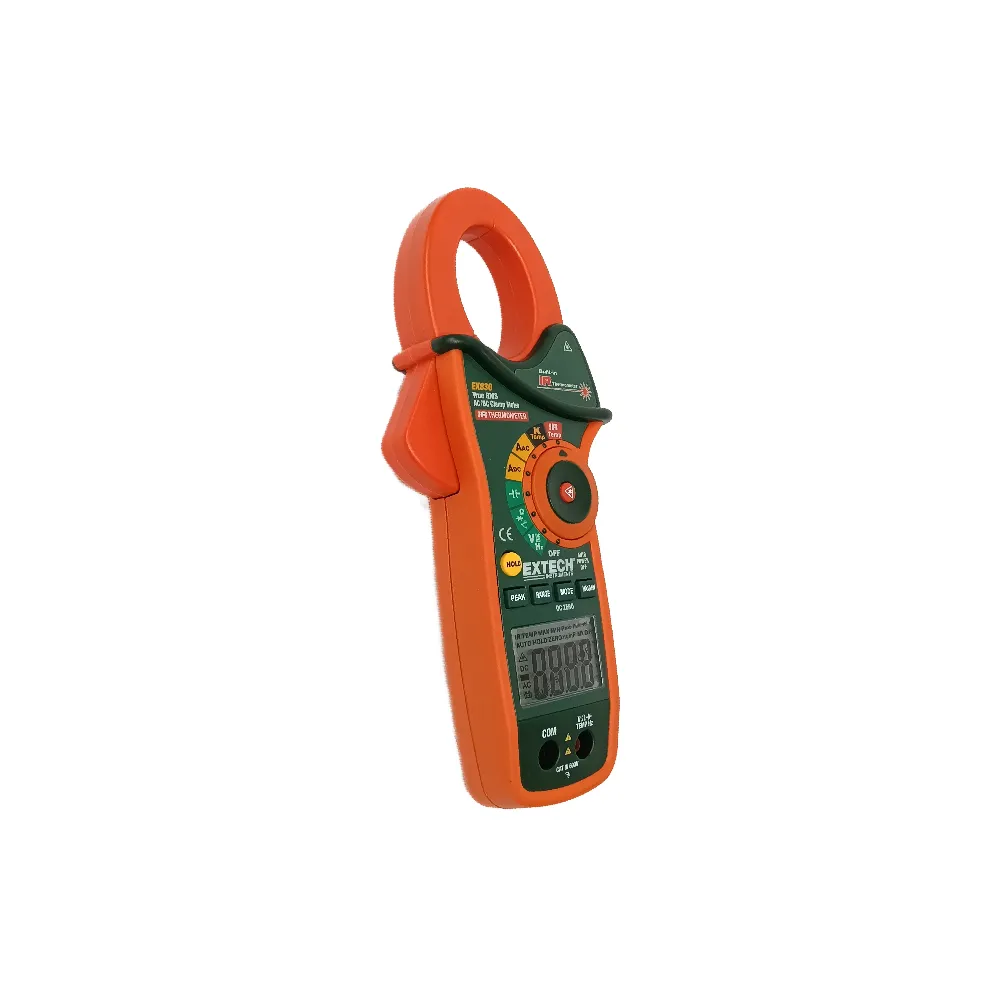

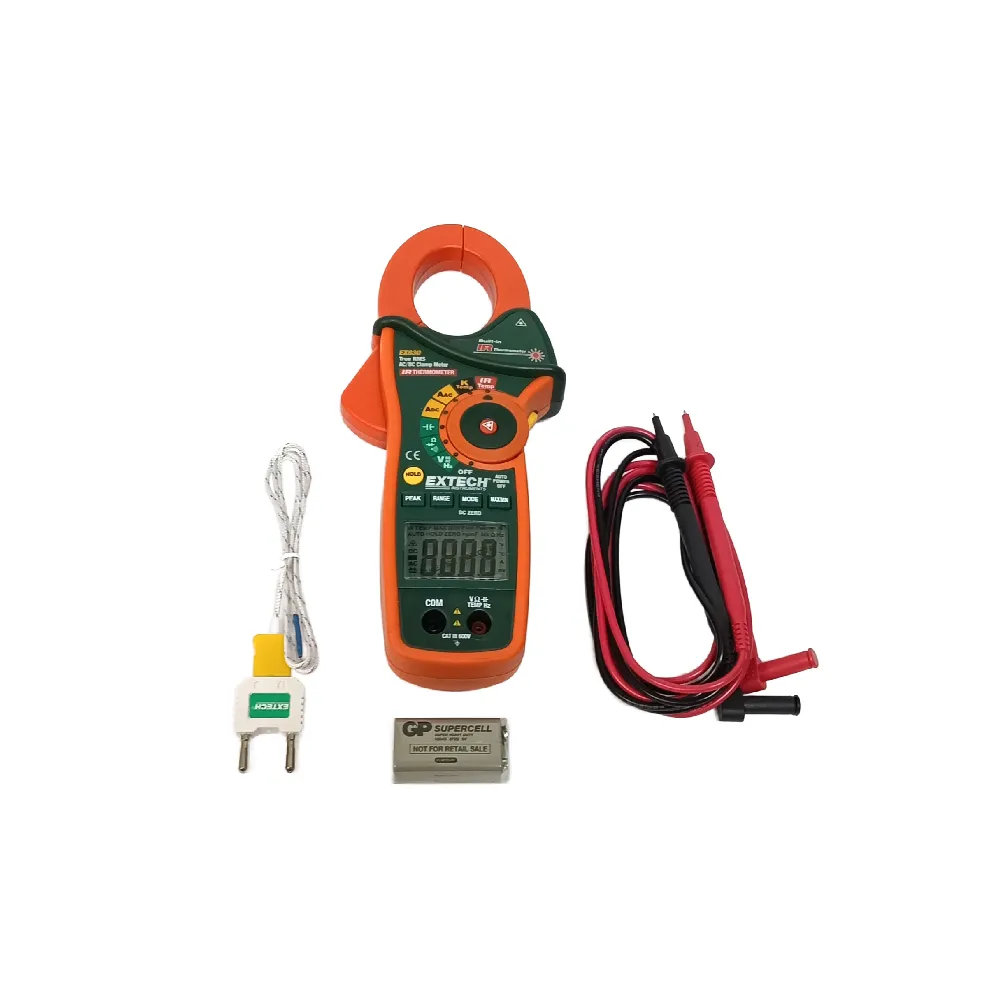

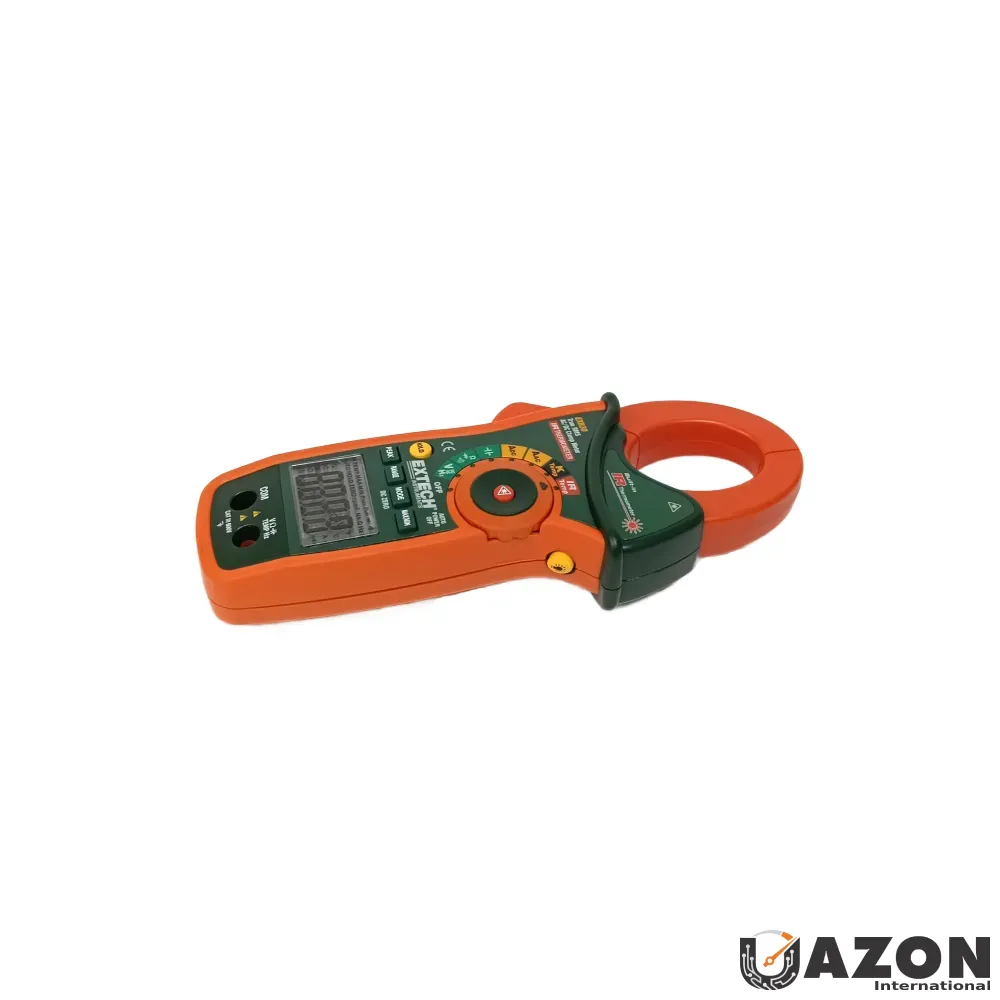

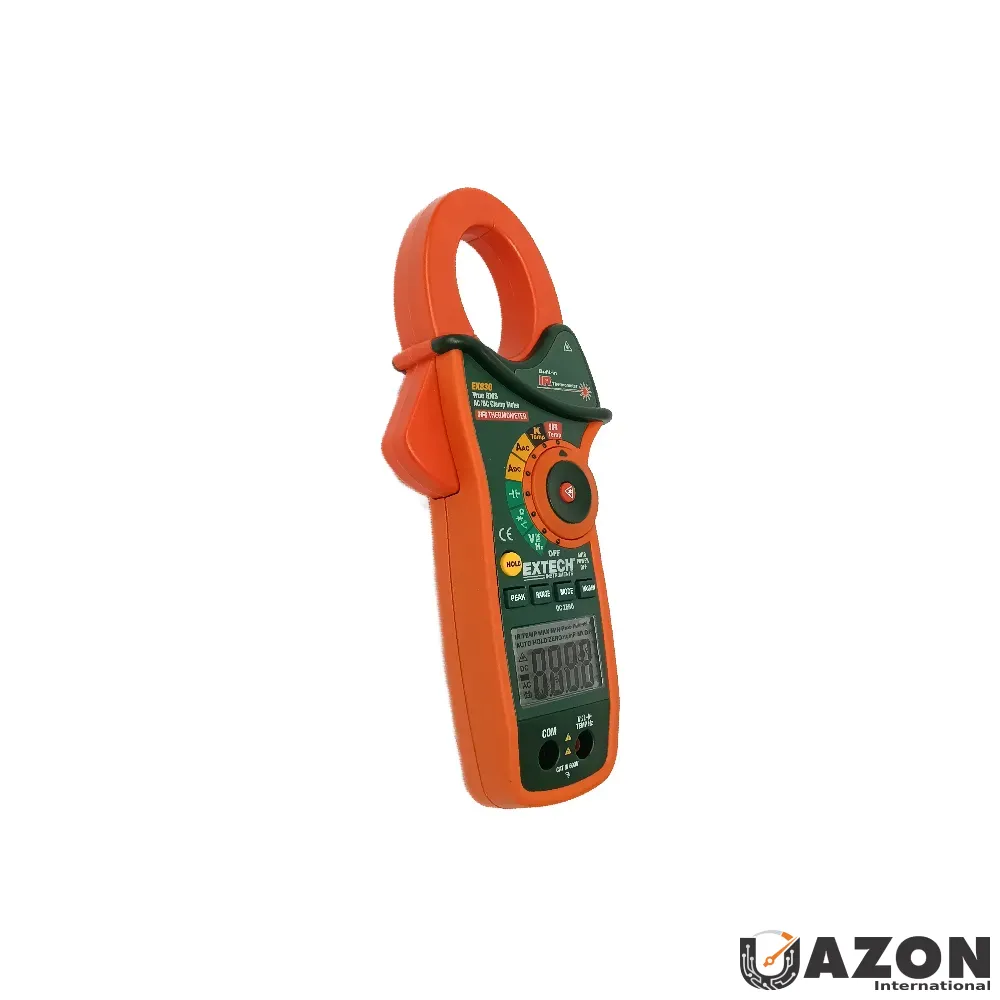

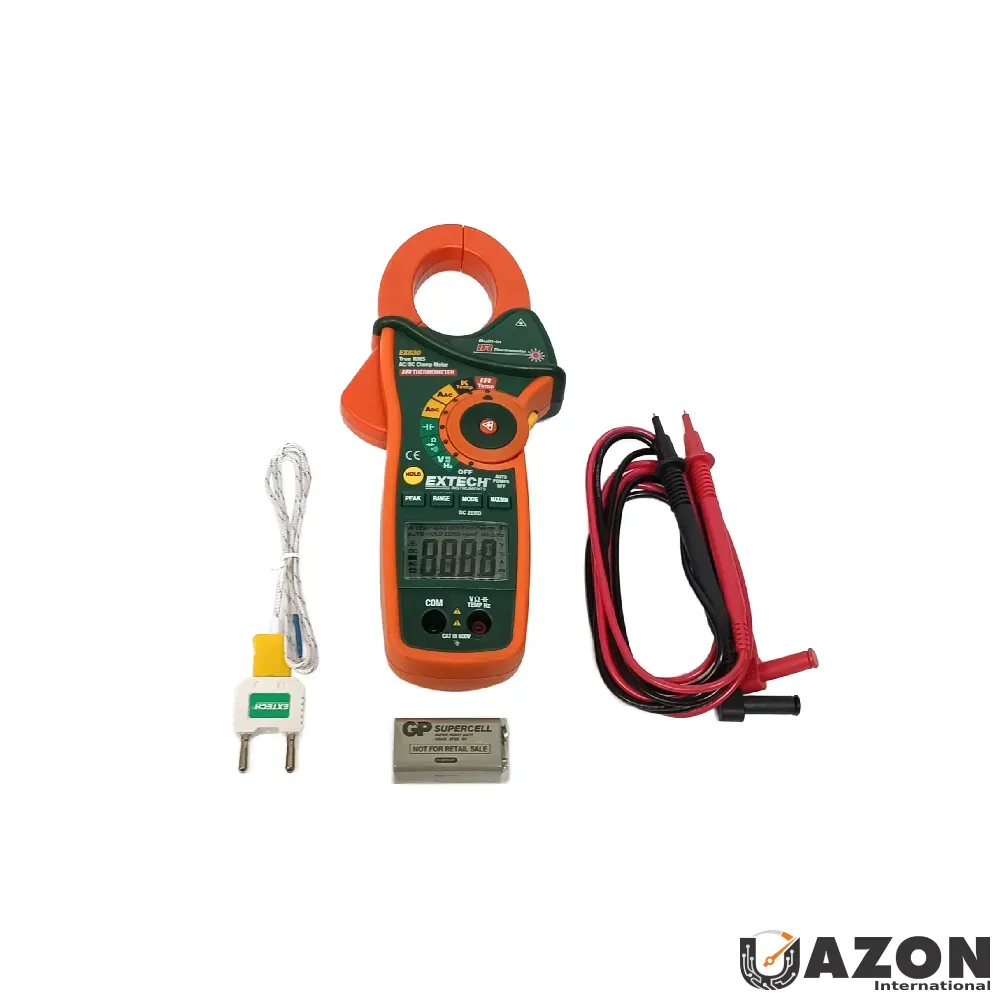

EXTECH EX830 1000A True RMS AC/DC Clamp Meter with IR Thermometer
Technicians and engineers require tools that offer versatility without sacrificing accuracy. The EXTECH EX830 1000A True RMS AC/DC Clamp Meter is engineered to meet these demands by combining essential electrical measurement capabilities with advanced thermal sensing. This device is designed for professionals who need to diagnose complex electrical issues while simultaneously monitoring thermal conditions in industrial and commercial environments. For those looking to upgrade their toolkit, finding the best price on the EXTECH EX830 ensures you gain access to high-end features without exceeding your budget.
Unlike standard clamp meters that only measure current, the EX830 integrates a built-in non-contact infrared thermometer. This dual functionality allows users to pinpoint hot spots on motors, transformers, and electrical panels without direct contact, significantly improving safety and efficiency. When you buy the EXTECH EX830, you are investing in a comprehensive diagnostic tool that streamlines troubleshooting workflows, reducing the time spent on service calls.
Technical Features and Field Applications of the EXTECH EX830
The core of the EXTECH EX830 lies in its ability to handle demanding industrial environments while maintaining precise measurement standards. True RMS (Root Mean Square) calculation is critical when working with variable frequency drives and non-linear loads, as it ensures accurate readings on AC current and voltage that standard meters might misinterpret. Understanding the technical specifications helps users maximize the utility of the device in various scenarios, from preventative maintenance to emergency repairs.
Below are the key technical features of the EXTECH EX830, highlighting the application benefits of each specification:
- AC/DC Current Measurement (0.1 to 1000A): With a wide measurement range and ±2.5% accuracy, the EX830 can handle heavy-duty industrial circuits and low-current control loops. The generous 1.7" (43 mm) jaw opening accommodates conductors up to 750MCM, making it ideal for inspecting large power cables and bus bars without disconnecting them.
- IR Temperature Sensor (-58 to 518°F / -50 to 270°C): The built-in infrared thermometer features a laser pointer, allowing users to safely scan for overheating components in live panels. With an accuracy of ±2.0% rdg or ±4°F/±2°C, it provides reliable data for predictive maintenance schedules, helping to identify failing components before they cause system downtime.
- Electrical Parameters (Voltage, Resistance, Capacitance, Frequency): The device measures AC/DC voltage (0.1mV to 600V), resistance (0.1 to 40MΩ), capacitance (0.001nF to 40,000μF), and frequency (0.001kHz to 4kHz). These functions cover the vast majority of troubleshooting tasks, from verifying circuit continuity to analyzing power quality issues, all within a single handheld unit.

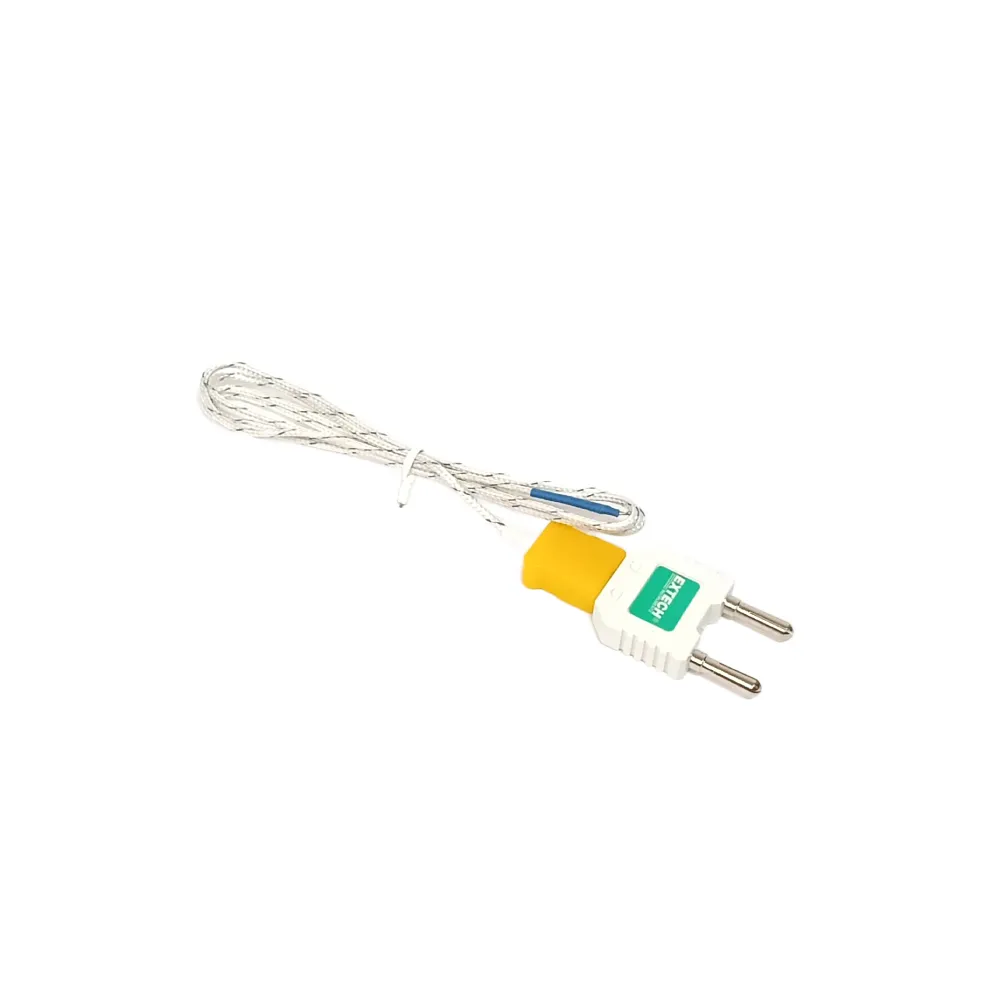

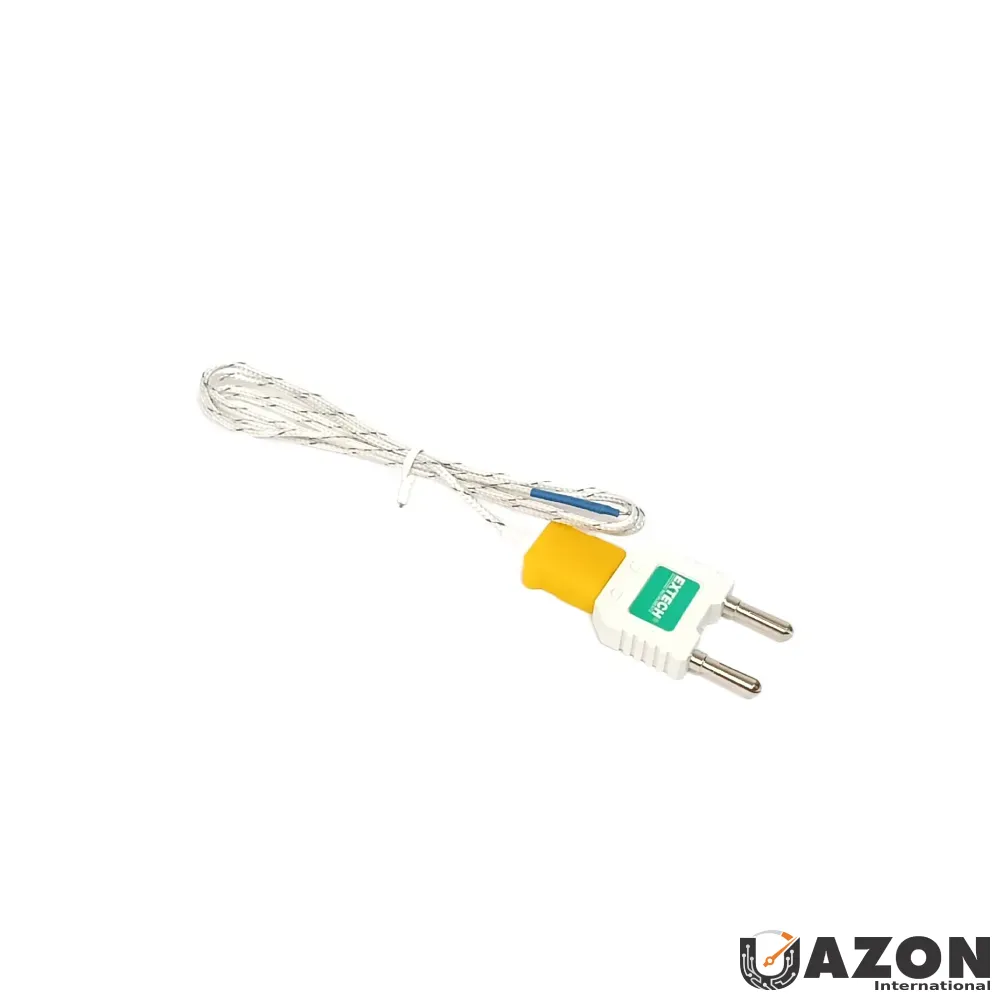

- Advanced Diagnostic Functions: The EX830 includes essential troubleshooting aids such as diode testing, an audible continuity beeper, and Type K thermocouple temperature input (-4 to 1400°F). The inclusion of Min/Max recording and a fast Peak Hold function is particularly valuable for capturing inrush currents and transient spikes, which are often the root cause of nuisance tripping in circuit breakers.
Ergonomic Design and User Experience
Field tools must withstand the rigors of daily use while remaining comfortable to operate over long shifts. The EXTECH EX830 features a double-molded housing designed for ergonomic comfort and durability. This construction provides a secure, non-slip grip, ensuring safety when working on elevated platforms or in confined spaces. Professionals looking for the best price on the EXTECH EX830 will appreciate that its design does not compromise on user safety or handling ease.
Visibility is a crucial factor in measurement accuracy. The EX830 is equipped with a large 4000-count LCD display complete with bright backlighting. This feature ensures that readings are clear and legible even in poorly lit mechanical rooms or outdoor environments at night. Auto power-off functionality preserves battery life during busy workdays, while the data hold function freezes the reading on the screen, allowing the user to record measurements without rushing.
Why Choose the EXTECH EX830 for Professional Use?
When evaluating clamp meters, professionals prioritize reliability and measurement integrity. The EXTECH EX830 stands out by offering True RMS accuracy across both AC and DC current measurements up to 1000A. This capability is essential for modern electrical systems that utilize variable frequency drives and switching power supplies, where non-sinusoidal waveforms can skew results on average-responding meters. Investing in this tool ensures that diagnostic data is accurate, reducing the risk of misdiagnosis.
Furthermore, the integration of an infrared thermometer enhances the value proposition of the EXTECH EX830. In many electrical maintenance scenarios, a temperature rise precedes failure. By combining electrical measurement with thermal scanning, technicians can perform comprehensive health checks on equipment. For procurement managers and individual technicians alike, the ability to buy a single tool that replaces multiple specialized meters offers significant cost savings and operational efficiency.
Operational Benefits of Inrush Current and Peak Hold
Startup currents can be deceptive and damaging. The fast Peak Hold function on the EXTECH EX830 is specifically engineered to capture inrush currents and transients that occur within milliseconds. Standard multimeters often miss these brief surges, leading to incomplete diagnostics. By capturing these peaks, the EX830 allows users to verify motor starting characteristics and identify potential weak points in electrical connections.
The ability to measure inrush current is a critical feature for troubleshooting motor starters and compressor circuits. When you secure the best price for the EXTECH EX830, you gain access to a specialized function that is typically found in much higher-priced equipment. This makes the EX830 a cost-effective solution for high-level electrical analysis.
Technical Specifications and Physical Attributes
Understanding the physical dimensions and weight of the tool is essential for evaluating its portability and fit in a tool kit. The EXTECH EX830 is designed to be lightweight yet robust, weighing only 13.6oz (386g). Its compact form factor ensures that it can be carried in a tool pouch or pocket, making it readily accessible during complex tasks.
Before purchasing, it is important to review the detailed specifications to ensure compatibility with your specific application needs. The following list outlines the exact performance metrics and physical details of the EXTECH EX830:
- IR Temperature Range and Accuracy: -58 to 518ºF (-50 to 270ºC) with an accuracy of ±2.0% rdg or ±4ºF/±2ºC. This range is suitable for monitoring HVAC systems, electrical panels, and mechanical bearings.
- AC Current Range and Accuracy: 0.1 to 1000A with ±2.5% accuracy. This broad range allows for the measurement of both control circuit currents and high-power distribution lines.
- DC Current Range and Accuracy: 0.1 to 1000A with ±2.5% accuracy. Essential for battery systems, DC motor control, and automotive electrical diagnostics.
- Voltage Measurement: AC and DC voltage ranging from 0.1mV to 600V with ±1.5% accuracy. This ensures precise readings for both control voltage and main power supply lines.
- Resistance and Capacitance: Resistance spans from 0.1 to 40MΩ (±1.5%), while capacitance ranges from 0.001nF to 40,000μF (±3.0%). These functions are vital for circuit continuity checks and component testing.
- Frequency and Type K Temperature: Frequency measurement from 0.001kHz to 4kHz (±1.5%) and Type K thermocouple input from -4 to 1400ºF/-20 to 760ºC (±(3% rdg+9°F/5ºC)). These add layers of diagnostic capability for complex systems.
- Build and Weight: Dimensions of 10.6×4.3×2″ (270x110x50mm) and a weight of 13.6oz (386g). The compact design facilitates one-handed operation in tight spaces.
Maximizing Value with the EXTECH EX830
The EXTECH EX830 True RMS AC/DC Clamp Meter is a comprehensive solution for modern electrical and thermal diagnostics. By integrating high-current measurement, temperature sensing, and advanced recording functions into one device, it addresses the diverse needs of electricians and maintenance professionals. Its durability and user-friendly design ensure that it remains a reliable partner on the job site, day after day.
For those ready to enhance their measurement capabilities, buying the EXTECH EX830 is a strategic decision that balances performance with value. We encourage you to compare the EXTECH EX830 Price with other models to see the exceptional value offered by its feature set. Secure the best price on the EXTECH EX830 today and equip yourself with a meter designed to tackle the toughest challenges in electrical maintenance.
