Megger Torkel 950
+2

Megger Torkel 950 Advanced Battery Load Unit

Store / Electrical
67,000.00 AED
In stock
Product Details
Brand: Megger
Current Range: 0.0 to 2999.0 A
Voltage Range: 0 to 1000 mV DC
mV/A-ratio: 0.30 mV/A to 100.00 mV/A
Operating Temperature: 0°C to +50°C (32°F to +122°F)
Storage Temperature: -40°C to +70°C (-40°F to +158°F)
Altitude: 3000 m (10000 ft)
Power : 100 – 240 V AC, 50/60 Hz
Dimensions: 519x315x375 mm, (20.5”x12.4”x14.7”)
Weight: 19.5 kg (43.0 lbs) instrument; 31.9 kg (70.3 lbs) incl
Display: 7" LCD, Capacitive touch screen

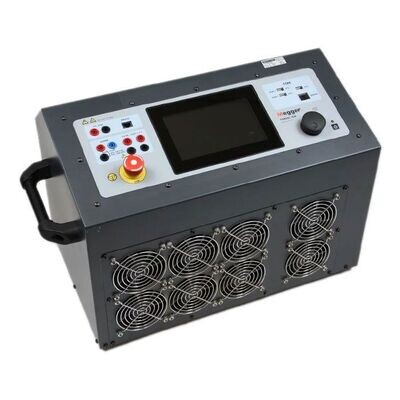

Megger Torkel 950 Battery Load Unit

The Megger Torkel 950 Battery Load Unit is a cutting-edge solution for conducting load/discharge testing on battery systems. It forms part of the Torkel 900 series, known for its high-performance capabilities and flexibility in testing various types of batteries.

The Torkel 950 is designed to perform load/discharge testing, allowing users to accurately determine the actual capacity of battery systems. It offers multiple testing modes, including constant current, constant power, constant resistance, and user-defined load profiles, providing a comprehensive assessment of battery performance.

With its ability to test a battery bank under different load conditions, the megger torkel 950 battery discharge tester is a versatile tool for assessing battery capacity and performance. Whether it's for maintenance purposes or as part of a routine testing regimen, this unit offers the flexibility to adapt to various testing requirements.
One of the key features of the Torkel 950 is its high discharge capacity, which sets it apart from other testing equipment. This high discharge capacity enables users to expedite the testing process, making it an efficient solution for assessing the true capacity of battery systems.
In conclusion, the Megger Torkel 950 Battery Load Unit is a state-of-the-art testing device that offers versatility, precision, and efficiency in determining the actual capacity of battery systems. With its advanced features and high discharge capacity, it is a valuable tool for industries and applications that rely on reliable battery performance.

You can compare the Megger Torkel 950 price with other suppliers in UAE and choose the best one.

Megger Torkel 950 Specifications

Category Specification
Temperature
Operating 0°C to +50°C (32°F to +122°F). Power derating at temperatures over +35°C (+95°F).
Storage & Transport -40°C to +70°C (-40°F to +158°F)
Humidity 5% – 95% RH, non-condensing
Shock/Vibration/Fall
Instrument Only ETSI EN 300 019-2-7 class 7M2
Instrument in Transport Case ISTA 2A
Altitude
Operating 3000 m (10000 ft)
Storage 10000 m (33000 ft)
Encapsulation Class IP20
CE-Marking
LVD IEC61010-1:2010 & IEC61010-2-030
EMC IEC61326-1
General
Mains Voltage 100 – 240 V AC, 50/60 Hz
Power Consumption 200 W (max)
Power Interruption 40 ms (max)
Protection Thermal cut-outs, Automatic overload protection, Emergency stop button
Dimensions 519x315x375 mm, (20.5”x12.4”x14.7”)
Weight 19.5 kg (43.0 lbs) instrument; 31.9 kg (70.3 lbs) incl. standard transport case; 37 kg (82 lbs) incl. large transport case
Display 7" LCD, Capacitive touch screen
Available Languages English, French, German, Spanish, Swedish
Measurement
Current Measurement
Display Range 0.0 to 2999.0 A
Basic Inaccuracy ±(0.5% of reading +0.1 A)
Resolution 0.1 A
Internal Current Measurement
Range 0 to 220 A
Input for Clamp-on Probe
Range 0 to 1000 mV DC
mV/A-Ratio 0.30 mV/A to 100.00 mV/A
Input Impedance >1 MΩ
Voltage Measurement
Voltage 0 to 500 V DC
Inaccuracy ±(0.5% of reading +0.1 V DC)
Resolution 0.1 V
Sample Rate 10 Hz, Values are saved when change is >10mV
Time Measurement
Inaccuracy ±0.1% of reading ±1 digit
Load
Battery Voltage 7.5 V to 300 V1)/500 V2)
Power 15 kW (max)
Load Patterns Constant current, constant power, constant resistance, current or power profile
Constant I
Range 0 to 220.0 A
Inaccuracy ±(0.5% +0.2 A)
Resolution 0.1 A
Ripple Max 0.5 A peak
Constant R
Range 300 mΩ to 3 kΩ
Inaccuracy ±1% typical
Resolution 100 mΩ
Constant P
Range 0 to 15 kW
Inaccuracy ±1% typical
Resolution 10 W
Inputs
+ 7.5 to 300 V.1) 7.5 to 500 V.2)
– 0 V
I EXT ≤ 1 V 1 V DC, 300 V DC to ground
Voltage Sense Impedance to the current terminals is >1 MΩ
Outputs
Alarm Relay contact 28 V DC, 8 A, 240 V AC, 8 A
TXL Stop Relay contact 250VDC, 0.28A, 28VDC, 8A, 250VAC, 8A
9 V DC 9 V DC, ±7% max 100 mA
Communication Ports
BVM1 BVM2 USB connection for BVM units
USB Connection for USB memory
Service Port You can find the full details in the Megger Torkel 950 Manual
