HIOKI DT4252 Digital Multimeter

Store / Electrical
400.00 AED
In stock
Product Details
Brand: Hioki
AC Voltage Range: 6.000 V to 1000 V
DC Voltage Range: 600.0 mV to 1000 V
AC Current Range: 6.000 A / 10.00 A
DC Current Range: 6.000 A / 10.00 A
Resistance Range: 600.0 Ω to 60.00 MΩ
Capacitance Range: 1.000 μF to 10.00 mF
Frequency Range : 99.99 Hz (5 Hz or more) to 9.999 kHz

HIOKI DT4252 Digital Multimeter

The HIOKI DT4252 is a digital multimeter engineered for general-purpose testing, boasting ±0.3% DC V accuracy, direct current input capability, and a generous 40 Hz to 1 kHz bandwidth.

Within the Hioki multimeter dt4252 , you'll discover a comprehensive range of 9 models catering to various needs, spanning from professional to industrial to pocket meters. This series offers an impressively rapid response rate and elevated safety features, elevating electrical testing to an advanced level.For more information about the Hioki dt4252 price be in touch with our experts.

Hioki multimeters DT4200 Series Introduction


HIOKI DT4252 Features

  • ±0.3% DC V basic accuracy, wide 40 Hz to 1 kHz AC V frequency characteristics
  • Low-pass filter cuts high harmonics (when measuring inverter fundamental waveforms)
  • Measure up to 10A with direct input
  • USB communications function supports PC measurements (optional)
  • The dual display lets you check voltage and frequency simultaneously

Hioki 4242 Specifications

DC Voltage range 600.0 mV to 1000 V, 5 ranges
Basic accuracy: ±0.3 % rdg. ±5 dgt.
AC Voltage range 6.000 V to 1000 V, 4 ranges, Frequency characteristics: 40 Hz - 1 kHz
Basic accuracy 40 - 500 Hz : ±0.9 % rdg. ±3 dgt. (True RMS, crest factor 3)
AUTO AC/DCV N/A
Resistance range 600.0 Ω to 60.00 MΩ, 6 ranges, Basic accuracy: ±0.7 % rdg. ±5 dgt.
DC Current range 6.000 A / 10.00 A, 2 ranges, Basic accuracy: ±0.9 % rdg. ±5 dgt.
AC Current range 6.000 A / 10.00 A, 2 ranges,
Basic accuracy 40 - 500 Hz : ±1.4 % rdg. ±3 dgt.
(True RMS, crest factor 3, 40 Hz to 1 kHz)
AC Current range (use with Clamp on probes) N/A
Voltage detection (50/60 Hz) N/A
Capacitance range 1.000 μF to 10.00 mF, 5 ranges, Basic accuracy: ±1.9 % rdg. ±5 dgt.
Frequency range AC V, AC A measurement: 99.99 Hz (5 Hz or more) to 9.999 kHz, 3 ranges, 99.99 kHz (only for AC V)
Basic accuracy: ±0.1 % rdg. ±1 dgt.
Continuity check Continuity threshold [ON]: 25 Ω or less (Indicate buzzer sound, red LED), [OFF]: 245 Ω or more
Response time: 0.5 ms or more
Diode test Open terminal voltage: 5.0 V or less, Testing current 0.5 mA or less,
Threshold of forward voltage: 0.15 V to 1.5 V
Other functions Filter function, display value hold, auto hold, MAX/MIN/Average value display, relative value display, auto-power save, USB communication (option)
Display Main and sub displays: 4-digits LCD, max. 6000 digits, bar graph
Display refresh rates 5 times/s (Capacitance measurement: 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 time/s, Temperature: 1 time/s )
Power supply LR03 alkaline batteries ×4, Continuous use: 130 hours (back light OFF)
Dimensions and mass 84 mm (3.31 in)W × 174 mm (6.85 in)H× 52 mm (2.05 in)D, 390 g (13.8 oz) (with batteries and holster)
Included accessories Test lead L9207-10 ×1, Holster ×1, Instruction manual ×1, LR03 alkaline battery ×4

HIOKI DT4252 Price

The price of the Hioki DT4252 places it in the mid-range category of digital multimeters, making it an accessible option for those who require high accuracy and reliability without the premium cost of higher-end models.

Show More
Save this product for later
Share this product with your friends
Pin it
HIOKI DT4252 Digital Multimeter
Store / Electrical
You May Also Like
HIOKI DT4261 DIGITAL MULTIMETER
HIOKI DT4261 DIGITAL MULTIMETER
HIOKI DT4261 DIGITAL MULTIMETER
859.00 AED

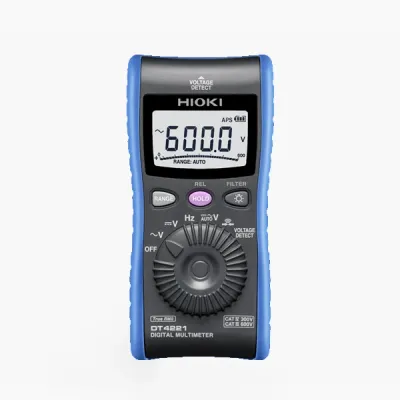

Hioki DT 4221 DIGITAL MULTIMETER
Hioki DT 4221 DIGITAL MULTIMETER
Hioki DT 4221 DIGITAL MULTIMETER
0.00 AED

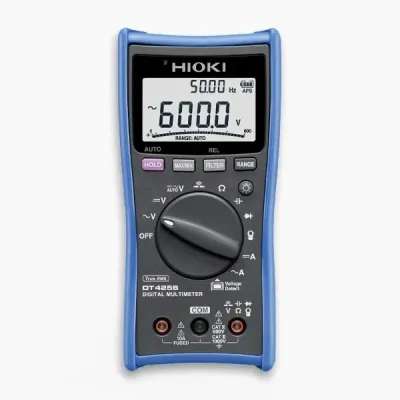

HIOKI DT4256 DIGITAL MULTIMETER
HIOKI DT4256 DIGITAL MULTIMETER
HIOKI DT4256 DIGITAL MULTIMETER
508.00 AED
Hioki DT4224 DIGITAL MULTIMETER
Hioki DT4224 DIGITAL MULTIMETER
Hioki DT4224 DIGITAL MULTIMETER
419.00 AED

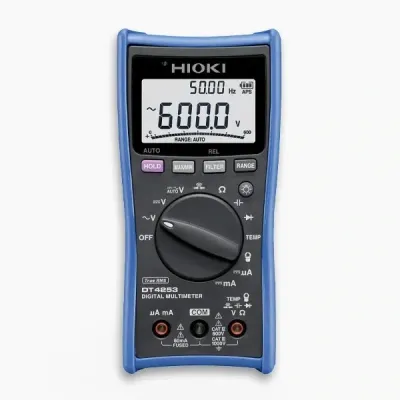

HIOKI DT4253 Digital Multimeter
